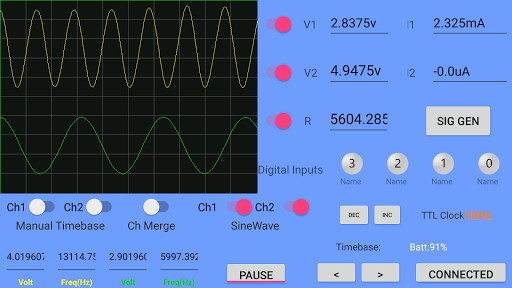

Link for PRAYOGeek UNO apphttps://play.google.com/store/apps/details?id=in.altilogic.prayogeek_unoPRAYOGeek provides a platform for students to learn electronics“hands on”. It packs most of the Lab equipments like Oscilloscope,Signal Generator, Voltmeter, Ammeter, Power supply and DigitalTrainer Kit into a portable and compact form which students cancarry anywhere. It opens up new possibilities where in the studentscan experiment both Analog and Digital Circuits together.Andriod App connects to the hardware via bluetooth and providesinterface to control the Hardware.Note: PrayoGeek Hardware is required for the app to work. The app does not work stand alone.Features OverviewDigital Signals• 12 Digital Inputs• 8 Digital Outputs• 2 Chanel Digital Oscilloscope (0v to 5V)• Clock Generator• Mono Pulse Trigger• 5v power supplyAnalog Signals• 2 Channel Function Generator (0 to 20kHz)• 2 Channel Analog Oscilloscope (+/-5v, Bandwidth 20kHz)• 2 voltmeters (0v to 30v)• 2 Ammeters (+/- 500ma)• Positive and Negative Power supply(+/- 7v) for Opamps.• 2 variable power supplies (1.25v to 6v).• 1 variable gain non inverting amplifier to view low voltagesignals.• 1 Unity gain Inverting Amplifier.• 200 Hz on board Sine wave Output
PRAYOGeek (Bluetooth)
